Portable PA System with Shure wireless:
Models:

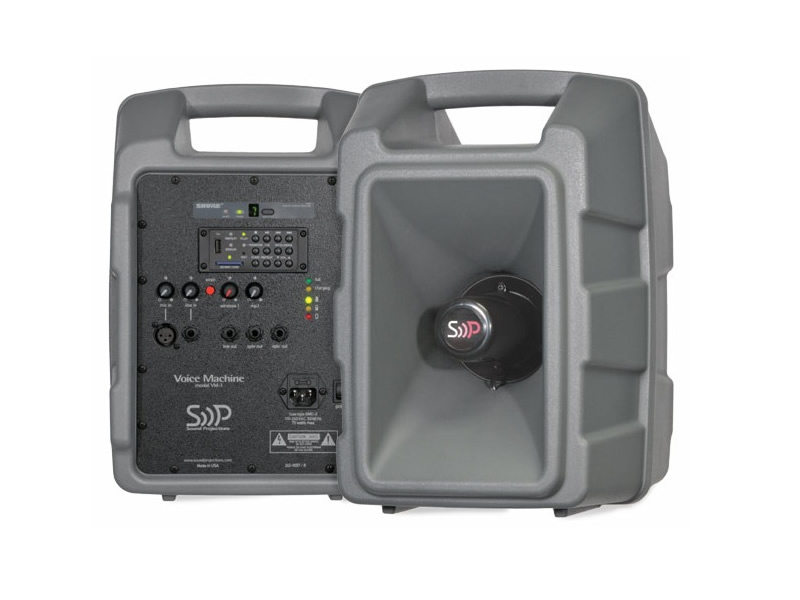

VM-1 Battery/AC-powered PA system with two speaker outputs.
VM-1C Companion Speaker for Voice Machine
Options: (factory installed)
OPT-400 Built-in MP3 player with USB port and SD/MMC memory card slot.
OPT-22FA Shure 10-channel UHF wireless handheld microphone system.
OPT-33FA Shure 10-channel UHF wireless body-pack system (used with wireless mics below)
Accessories:
SC50-2W 50’ speaker cable with 1/4"plug ends.
MIC-HH1 Handheld Microphone (wired) with 30 foot cable and connectors.
SS-3 Basic speaker stand.
TB-1 Tote bag for speaker stand.
PSC-VM Protective slip cover with storage pocket.
Microphones for use with body-pack systems (use with OPT-33FA)
MIC-L4 Lapel microphone for body-pack transmitter.
MIC-HB4 Headset boom microphone for body-pack transmitter.
|
|
Specifications:
Models
Rated power output
. . . 50 watts continuous
Max SPL
. . . 127 dB
Frequency response
. . . 350 Hz - 10 kHz
Wireless system
. . . 10 channel,3 group
. . . UHF diversity
Battery life
. . . 6-12 hours typical
Battery and charger
. . . 12 Volt,9AH
. . . internal 2-stage charger
. . . recharge time:6 hours
Power requirements
. . . 110-230VAC,75 watts max
Dimensions (HWD)
. . . 15.35 x 11 x 12"
Weight
. . . 17 lbs
Inputs
. . . (1) mic level,balanced,XLR
. . . (1) line level,
1/4" phone,
Hi-Z
Outputs
. . . (1) line level,1/4" phone
. . . (2) 8 ohm speaker,1/4" phone
|
|
 |
