Audience size from 50 – 5500
- System includes two custom made speaker cabinets(one for storage and one for equipment rack storage)
- 100% Portable Professional Audio and Video system
- Built in DVD, CD, MP3, and CASS (optional Karaoke players available)
- Plug and Play- simply place cabinets in desired location, lock casters, and hook up one AC cable and two Speaker cables! It’s that simple
- Simple operation for non-experienced or first time operators
- Stores easily in any closet, equipment room, or class room
- Custom built with only the most reliable, dependable and professional brand name gear in the industry. No consumer components

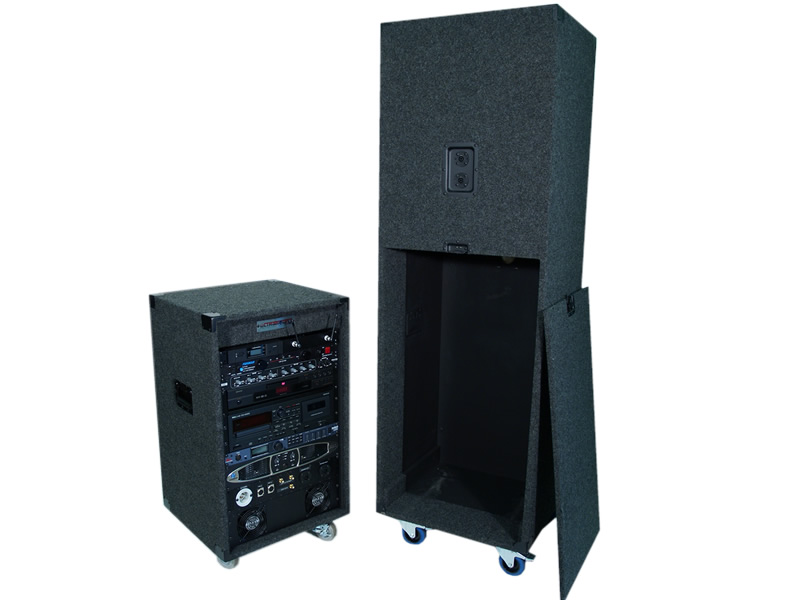

- Removable equipment rack for remote operation
- System includes all necessary cables for operation
- Standard system includes one wireless and two handheld microphones with stands and booms



Front View

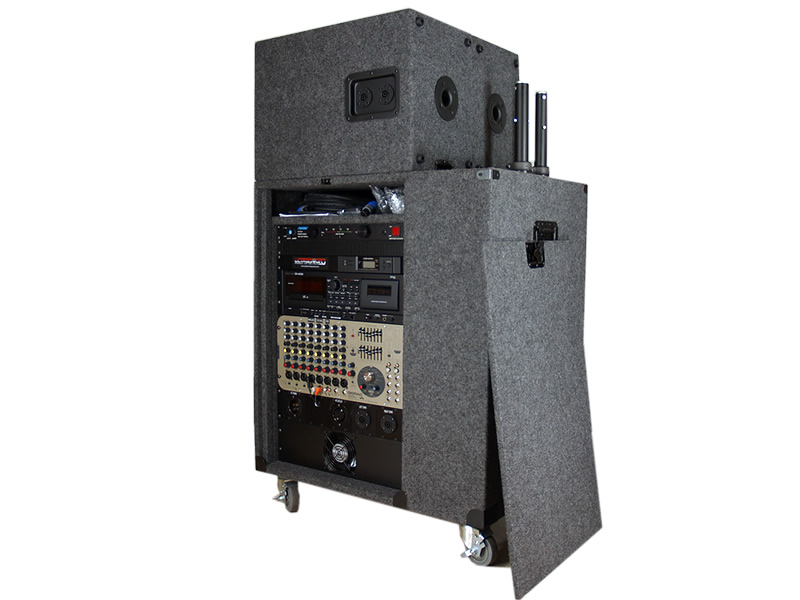

Standard configuration equipment rack includes:
- One two channel 2500 watt professional power amplifier
- One all-in one professional system controller (EQ, Limiter, and Cross-over) Pre-programmed and locked out at time of order to ensure NO BLOWN SPEAKERS and maximum clarity and natural sound in any environment
- One professional rack mounted combo CD/CASS player with pitch control
- One professional rack mounted DVD player with Progressive scan
- One professional rack mounted UHF wireless microphone with 200 selectable user channels
- One professional rack mounted power supply/conditioner with two pull out work lights(perfect for operating equipment in dark environments)
- Two ultra quiet cooling fans to keep equipment cool even in the most demanding hot weather conditions
- One Ultrasound Audio custom patch panel for easy cable connections (1 AC inlet, 2 Speakon speaker outputs, 2 XLR hardwire microphones inputs, 1 RCA type video output, and 1 stereo RCA type AUXILARY input for IPOD, PC, etc..)
- One professional rack mounted MIC/Line mixer with four microphone inputs and four stereo line inputs. Pull-out mini PA mixer available upon request
- Locking 3” ball bearing casters for easy mobility and secure placement
- Two recessed handles
- Protective black metal corners

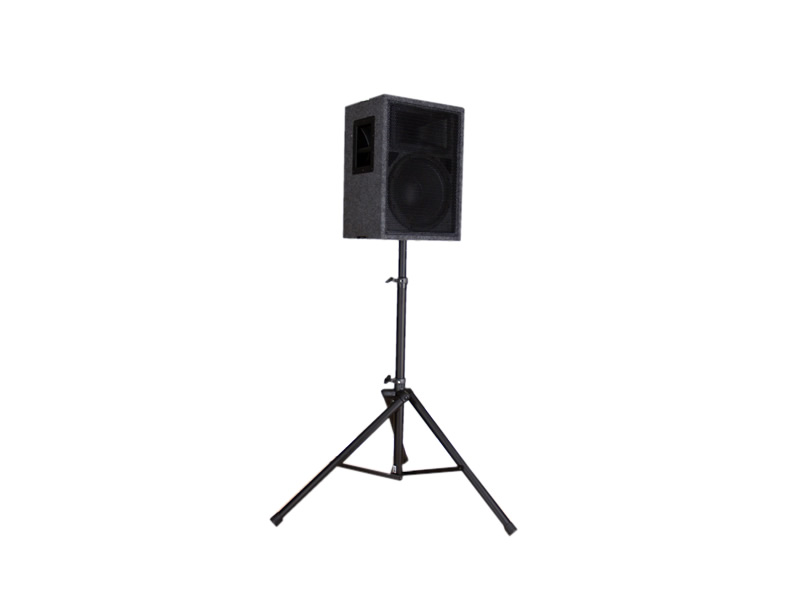

All custom speaker cabinets include the following:
- One high-powered 15” professional load speaker
- One 4” High/Mid compression driver
- One 90 x 60 horn with 2” throat for consistent even coverage of output
- One high-power cross-over specially engineered to give you the most natural sound and highest output
- Custom speaker grill which protects not only the woofer but the horn as well
- Two sets of Speakon speaker connection for easy connection and daisy chaining of extra cabinets(available separately)

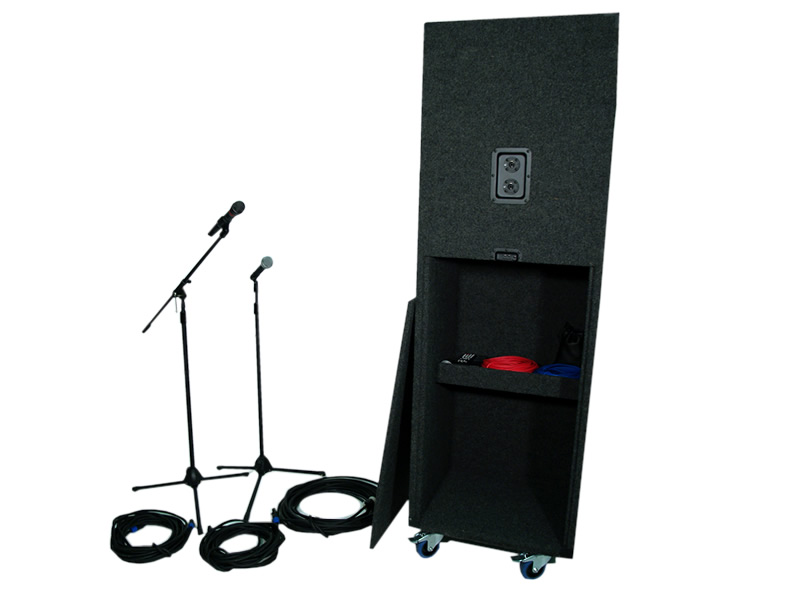

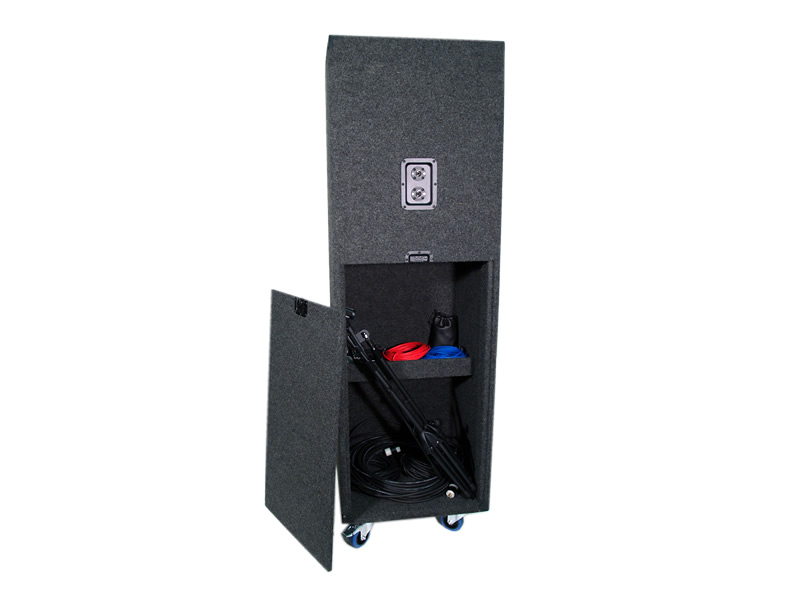

- One cabinet houses the equipment rack and the other for storage (microphones and stands, cables, etc...)
- 4” ball bearing locking casters
-----------------------------------------------

- Pad-lockable latches for maximum security and keeping unauthorized users out
- Available in black or grey carpet
- Custom school logo silk screening available on speaker grills
- Easily add an extra wireless mic, CD recorder, AM/FM tuner, sets of speaker cabinets, or anything you can think of – just ask at the time of order
- 3 Year warranty on electronic components
