Sound Machine

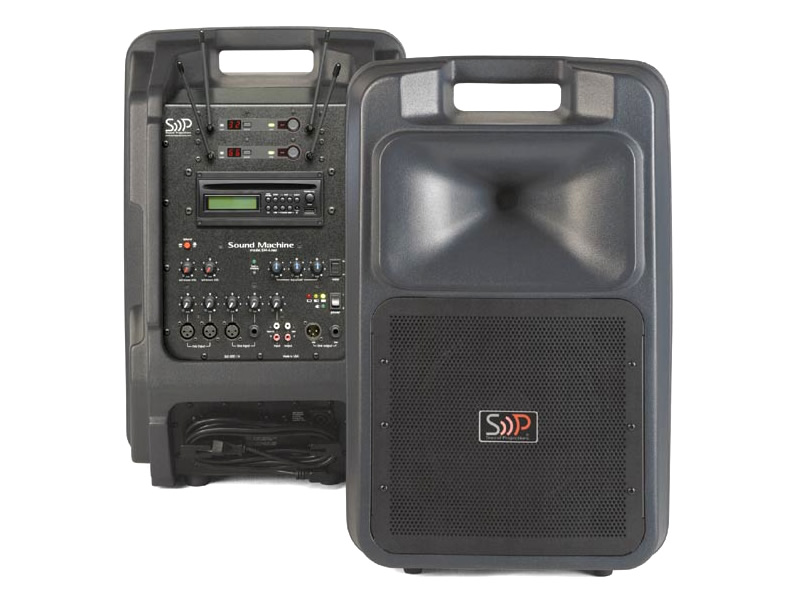

Portable Sound System with Shure wireless
The reference by which all others are measured.

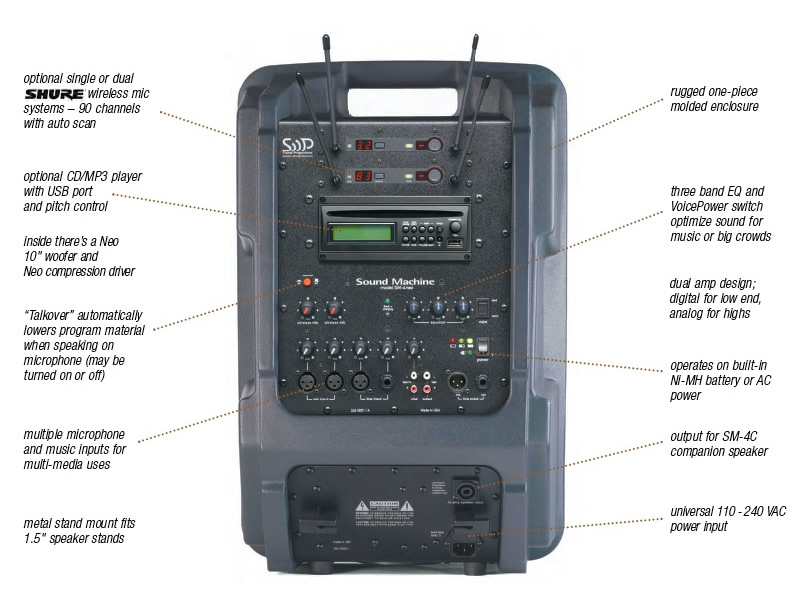

• Weighing only 33 pounds,the SM-4neo delivers 200 watts,
127dB SPL and 6-12 hours of operating time.
• Optional CD/MP3 player with port for USB memory key
and up to two auto-scan wireless microphones.
• Neodymium speakers and NiMH battery improve efficiency,
reduce overall weight and extend operating time..
• ‘Talkover’feature automatically lowers program material
when speaking on microphone,ideal for short announce-
ments and multi-media presentations.
• Operates up to a full day on the internal battery,or plug it in
for continuous use.
• Best warranty in the industry;6 years on the
system,3 years on the Ni-MH battery.







Portable Sound System with Shure wireless:
Models:
SM-4neo Battery/AC-powered sound system with output for companion (SM-4C).
SM-4neoACAC powered sound system with output for companion speaker (SM-4C).
SM-4C Companion Speaker for Sound Machine
Options: (factory installed)
OPT-100 Built-in CD/MP3 player with port for USB memory key.
OPT-20FA Shure 90-channel UHF wireless handheld microphone system.
OPT-30FA Shure 90-channel UHF wireless body-pack system (used with wireless mics below)
Accessories:
SC50-4W 50’ speaker cable.
SC100-4W100’ speaker cable.
MC-4W Mating coupler, 4 pole (use to join speaker cables).
MIC-HH1 Handheld Microphone (wired) with 30 foot cable and connectors.
PSC-SM Protective slip cover for Sound Machine.
SS-1 Heavy-duty "Telelock" speaker stand with tote bag.
SS-2 Economy speaker stand with tote bag.
SPORT-1 Sound-Porter transport system (collapsible hand-truck with cover).
BCX-50 50 foot balanced cable for mic or line connections.
Microphones for use with body-pack systems (use with OPT-30FA)
MIC-L2 Lapel microphone for body-pack transmitter.
MIC-HB2AHeadset boom microphone for body-pack transmitter
MIC-CM2 Collar microphone for body-pack transmitter.







Specifications:
Rated power output
. . . 200 watts dynamic
Max SPL
. . . 127 dB ‘loud’ mode
. . . 120 dB ‘normal’ mode
Frequency response
. . . 65 Hz - 16 kHz
Wireless system
. . . 90 channel,auto-scan
. . . UHF true diversity
Battery life
. . . 6-12 hours typical
. . . charge temp:0-50°C
Power requirements
. . . 110-240VAC,200 watts max
Dimensions (HWD)
. . . 23 x 15 x 13"
Weight
. . . 33 lbs (SM-4neo)
. . . 29 lbs (SM-4neoAC)
. . . 24 lbs (SM-4C)
Inputs
. . . (2) mic level,balanced,XLR
. . . (1) line level,balanced, XLR
. . . (1) line level,1/4" phone
. . . (1) tape/CD level,dual RCA
Outputs
. . . (1) line level,balanced,XLR
. . . (1) line level,1/4" phone
. . . (1) tape/CD level,dual RCA
. . . (1) speaker output
