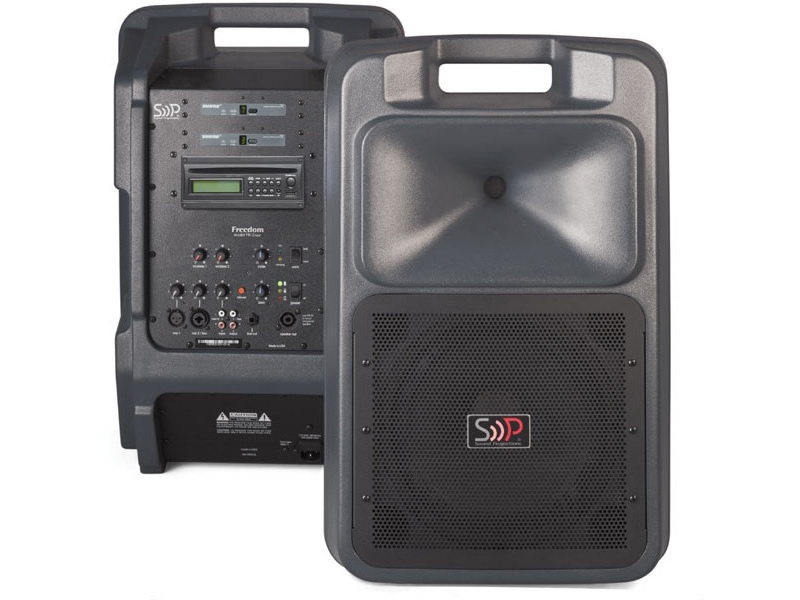

Freedom
Portable Sound System with Talkover
The features you need at a price you can afford.

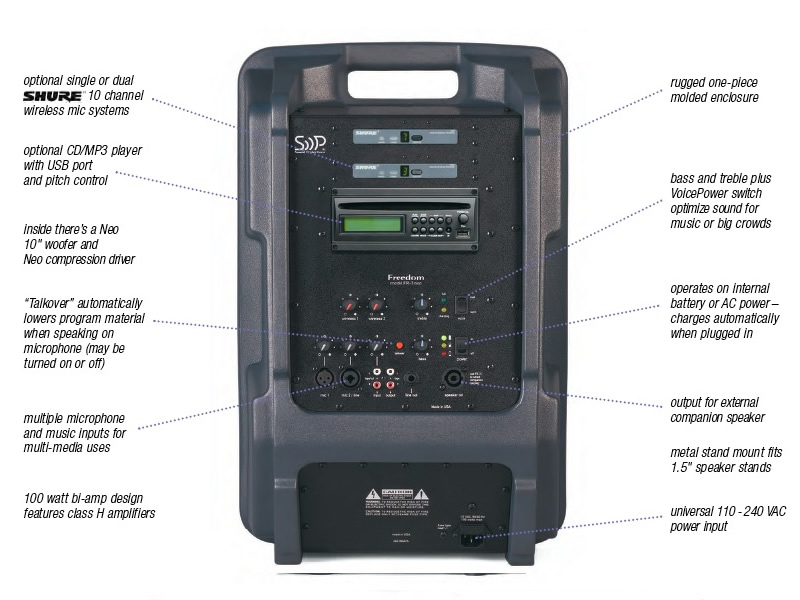

• Clear and powerful sound thanks to a dual amplifier configu-
rationdriving a Neodymium 10"woofer and titanium-dome
compression driver.
• Light-weight – basic system weighs just 32 pounds.
• Optional CD/MP3 player with port for USB memory key
and up to two 10 channel wireless microphones.
• Exclusive ‘talkover’feature automatically lowers program
material when speaking on microphone,ideal for short
announcements and multi-media presentations.
• With 100 watts total dynamic power,it’s just right for groups
of 100 people to crowds of 2,000 or more.
• Use it anywhere – operates up to a full day on the built-in
battery,or plug it in for true ACoperation.
• Six year warranty on system,2 years on battery.




Portable Sound System with Talkover:
Models:
 FR-3neo Battery/AC-powered sound system with output for companion (FR-3C)
FR-3C Companion Speaker for Freedom.
Options: (factory installed)
OPT-100 Built-in CD/MP3 player with port for USB memory key.
OPT-22FA Shure 10 channel UHF wireless handheld microphone system.
OPT-33FA Shure 10 channel UHF wireless body-pack system(used with wireless mics below).
OPT-HB1 Heavy Duty Battery - increases operating time 50%.
Accessories:
SC55-4W 50 foot 4-wire speaker cable.
MC-4W Mating coupler, 4 pole (use to join speaker cables).
MIC-HH1 Handheld Microphone (wired) with 30 foot cable and connectors.
PSC-SM Protective slip cover with storage pocket.
SS-2 Basic speaker stand.
TB-1 Tote bag for speaker stand.
SPort-1 Sound-Porter convertible transport system.
Microphones for use with body-pack systems (use with OPT-33FA)
MIC-L4 Lapel microphone for body-pack transmitter.
MIC-HB4 Headset microphone for body-pack transmitter.
MIC-CM2 Collar microphone for body-pack transmitter.













Specifications:
Rated power output
. . . 100 watts
Max SPL
. . . 123 dB ‘loud’ mode
. . . 115 dB ‘normal’ mode
Frequency response
. . . 70 Hz - 15 kHz
Wireless system
. . . Shure 10 channel,3 group,
. . . UHF diversity
Battery life
. . . 4-8 hours typical
Dimensions (HWD)
. . . 23 x 15 x 13"
Weight
. . . 33 lbs (36 lbs with OPT-HB1)
Talkover microphone
. . . wireless mic 1 (wired mic 1
if no wireless installed)
Inputs
. . . (2) mic level,balanced,XLR
. . . (1) line level,1/4" phone
. . . (1) tape/CD level,dual RCA
Outputs
. . . (1) line level, 1/4" phone
. . . (1) tape/CD level,dual RCA
. . . (1) speaker output
AC Power Requirements
. . . 110 to 240 VAC,50-60Hz
120 watts max
